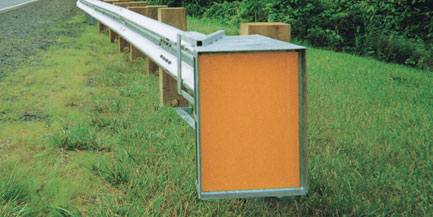

X-LITE End Terminal
The X-LITE is a re-directive, gating, NCHRP 350 TL3 compliant end terminal and is acceptable for use on the National Highway system. The X-LITE uses many standard guardrail components and provides maximum interchangeability with the X-LITE flared system.

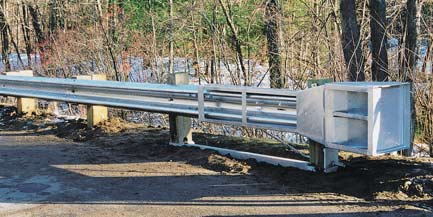

X-LITE Flared End Terminal
The X-LITE FLARED is a re-directive, gating, flared end terminal and uses many of the same components as the tangent X-LITE with the exception of additional proprietary steel post and hardware.



X-LITE Systems Specifications
• Classification – Re-directive Gating (R-G) End Treatment
• Length – 37' 6"
• Height – 27 5/8" or 31"
• Straight / Variable Flare – 4'
• Test Level – NCHRP 350 TL-3

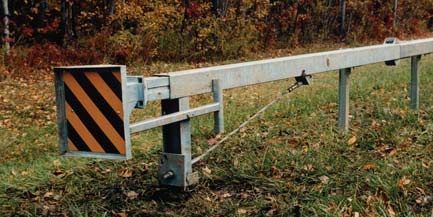

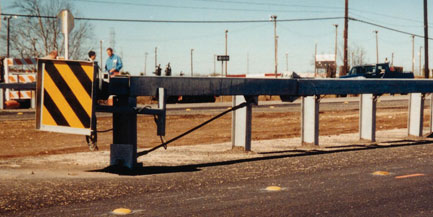

Standard End Terminals
Highway Safety Corp also provides all standard terminals and Transitions both leading and trailing end such as a Trailing End Anchorage, Turn Down Ends and Various Bridge Attachment Transitions.
